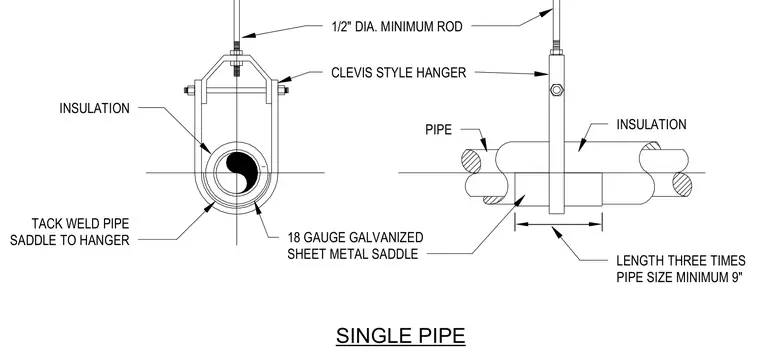

An insulated pipe is supported by a clevis-style hanger suspended from a one-half inch diameter minimum threaded rod. An eighteen gauge galvanized sheet metal saddle protects the insulation beneath the hanger and is tack welded to the hanger. The insulation length extends a minimum of three times the pipe size with a minimum length of nine inches.
INSULATION LENGTH THREE TIMES PIPE SIZE MINIMUM 9" SINGLE PIPE TACK WELD PIPE SADDLE TO HANGER INSULATION CLEVIS STYLE HANGER 18 GAUGE GALVANIZED SHEET METAL SADDLE 1/2" DIA. MINIMUM ROD PIPE
