Mechanical · M-M9W6F

Supply Ductwork Take-Offs

Materials

Elements

About this detail

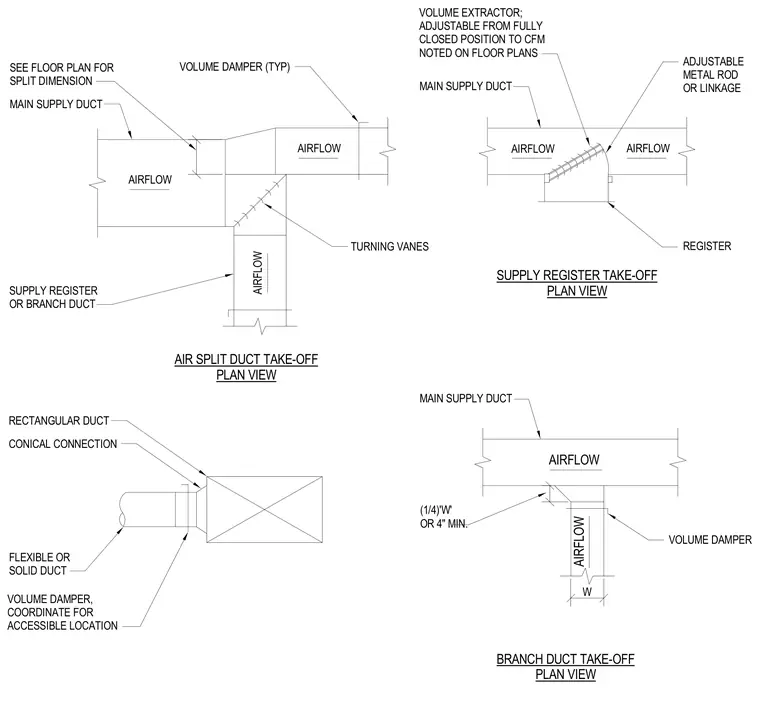

These mechanical details show typical supply ductwork take-offs in plan view, including air split connections, register take-offs, and branch duct connections. The assembly incorporates main supply ducts transitioning into branch ducts or registers using rectangular ducts, conical connections, and flexible or solid ductwork. Internal airflow controls feature turning vanes, volume dampers, and volume extractors adjustable via metal rods or linkages. Volume dampers are coordinated for accessible locations, with specific offsets such as one-quarter of the duct width or four inches minimum maintained at branch junctions.
