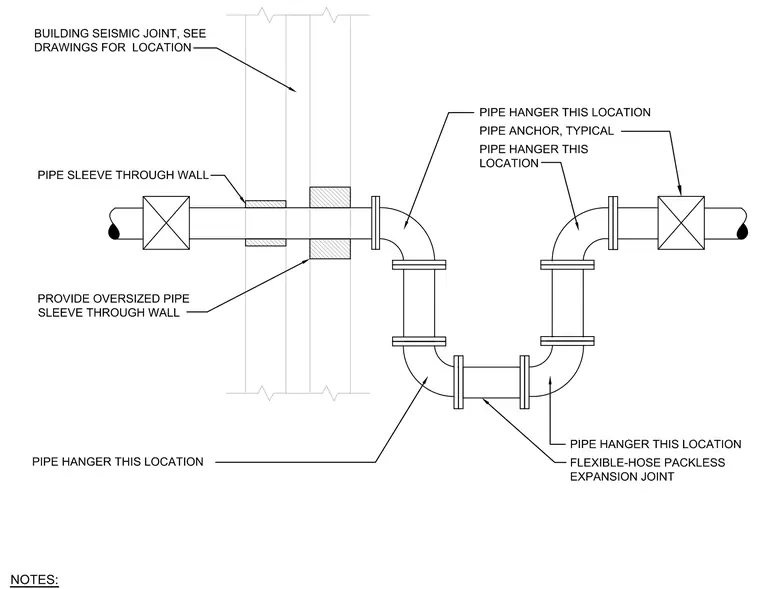

Mechanical piping crosses a building seismic joint, with locations determined per architectural and structural drawings. The piping system passes through a wall via a standard pipe sleeve and an oversized pipe sleeve to accommodate movement. A flexible-hose packless expansion joint is integrated between pipe offsets to absorb seismic displacement. The assembly is supported by multiple pipe hangers positioned at specific locations along the run, complemented by a typical pipe anchor.
NOTES: BUILDING SEISMIC JOINT, SEE DRAWINGS FOR LOCATION PIPE ANCHOR, TYPICAL FLEXIBLE-HOSE PACKLESS EXPANSION JOINT PIPE SLEEVE THROUGH WALL PIPE HANGER THIS LOCATION PROVIDE OVERSIZED PIPE SLEEVE THROUGH WALL PIPE HANGER THIS LOCATION PIPE HANGER THIS LOCATION PIPE HANGER THIS LOCATION
