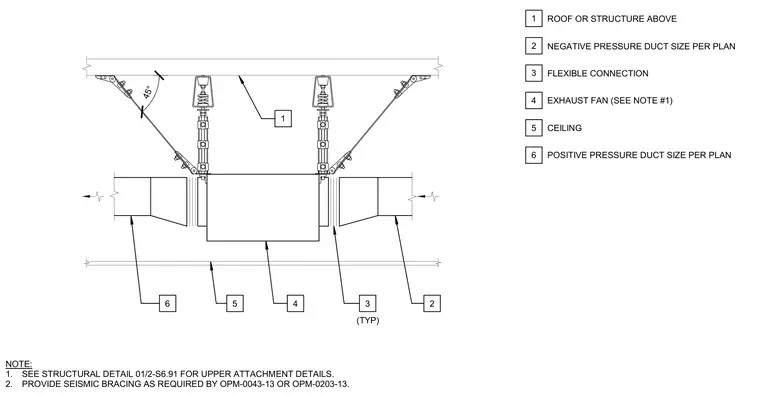

An exhaust fan or VAV terminal unit is suspended from the roof or structure above using spring isolators or hangers. Flexible connections link the unit to both the positive and negative pressure ducts sized per plan. Diagonal seismic sway braces are installed at a forty-five degree angle with structural attachments. Upper attachments are coordinated with structural details, and seismic bracing is provided as required by OPM standards.
(TYP) 1 2 3 4 5 6 NEGATIVE PRESSURE DUCT SIZE PER PLAN FLEXIBLE CONNECTION ROOF OR STRUCTURE ABOVE EXHAUST FAN (SEE NOTE #1) POSITIVE PRESSURE DUCT SIZE PER PLAN CEILING NOTE: 1. SEE STRUCTURAL DETAIL 01/2-S6.91 FOR UPPER ATTACHMENT DETAILS. 2. PROVIDE SEISMIC BRACING AS REQUIRED BY OPM-0043-13 OR OPM-0203-13. 1 2 3 4 5 6 45°
