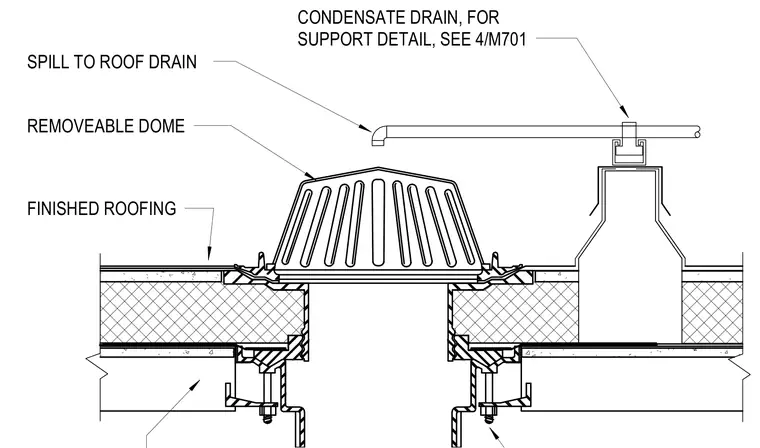

A condensate drain line terminates above the finished roofing to spill directly into a roof drain equipped with a removable dome. The piping is secured by a support stand with reference made to a separate support detail on sheet M701.
REMOVEABLE DOME FINISHED ROOFING SPILL TO ROOF DRAIN CONDENSATE DRAIN, FOR SUPPORT DETAIL, SEE 4/M701
