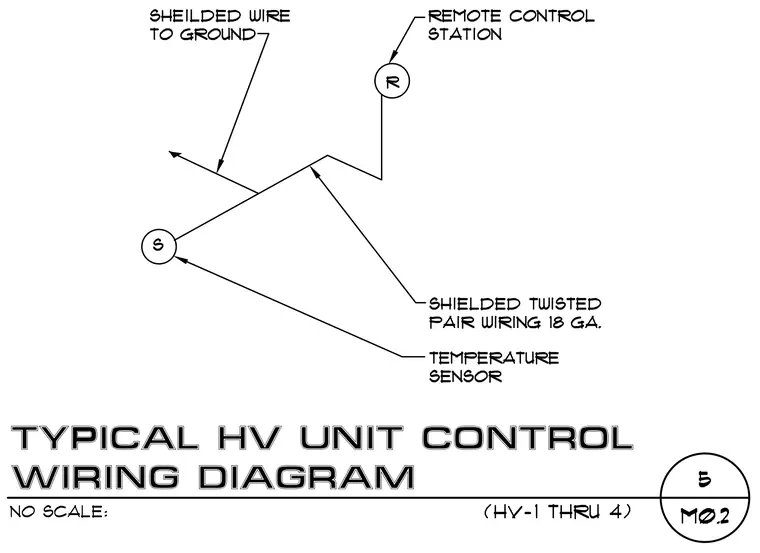

This diagram details the control wiring setup for an HVAC unit connecting a temperature sensor to a remote control station. The circuit utilizes 18-gauge shielded twisted pair wiring with the shielded wire grounded appropriately. Standard control components are linked to provide signal transmission for heating and ventilation equipment.
