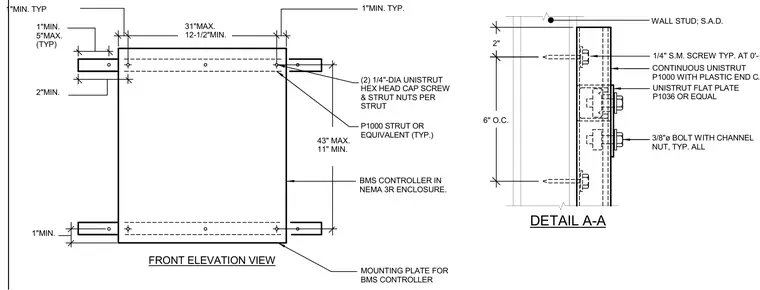

A Building Management System controller in a NEMA 3R enclosure is secured to wall studs using horizontal continuous Unistrut P1000 channels with plastic end caps. The enclosure features an interior mounting plate attached to the Unistrut using two quarter-inch-diameter Unistrut hex head cap screws and strut nuts per strut. The continuous Unistrut channels are fastened to the wall studs using quarter-inch sheet metal screws spaced at six inches on center. Three-eighths-inch-diameter bolts with channel nuts secure the assembly through flat plates at specified intervals.
CONTINUOUS UNISTRUT P1000 WITH PLASTIC END CAP 1/4" S.M. SCREW TYP. AT 0'-6" O.C. UNISTRUT FLAT PLATE P1036 OR EQUAL 3/8"ø BOLT WITH CHANNEL NUT, TYP. ALL WALL STUD; S.A.D. FRONT ELEVATION VIEW DETAIL A-A 6" O.C. 2" 43" MAX. 11" MIN. 31"MAX. 12-1/2"MIN. 1"MIN. TYP 1"MIN. TYP. BMS CONTROLLER IN NEMA 3R ENCLOSURE. P1000 STRUT OR EQUIVALENT (TYP.) MOUNTING PLATE FOR BMS CONTROLLER (2) 1/4"-DIA UNISTRUT HEX HEAD CAP SCREW & STRUT NUTS PER STRUT 1"MIN. 2"MIN. 1"MIN. 5"MAX. (TYP)
