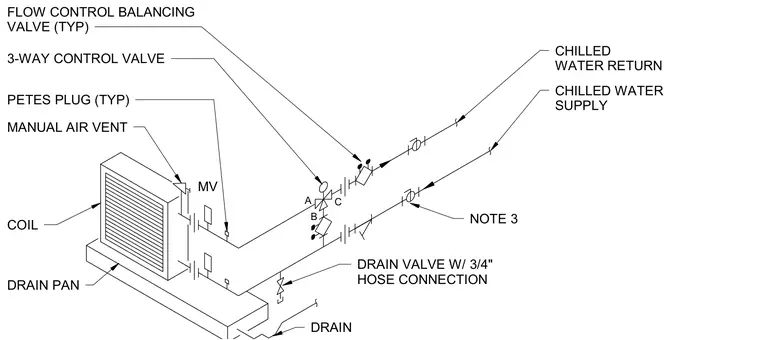

The chilled water single coil is piped to chilled water supply and return lines incorporating a three-way control valve and a flow control balancing valve typically. Pete's plugs are installed for temperature and pressure measurement. A manual air vent sits at the top of the coil connection, and a drain valve with a three-quarter-inch hose connection ties into the drain pan assembly.
MV NOTE 3 FLOW CONTROL BALANCING VALVE (TYP) COIL 3-WAY CONTROL VALVE PETES PLUG (TYP) MANUAL AIR VENT A B C DRAIN VALVE W/ 3/4" HOSE CONNECTION CHILLED WATER RETURN CHILLED WATER SUPPLY DRAIN DRAIN PAN
