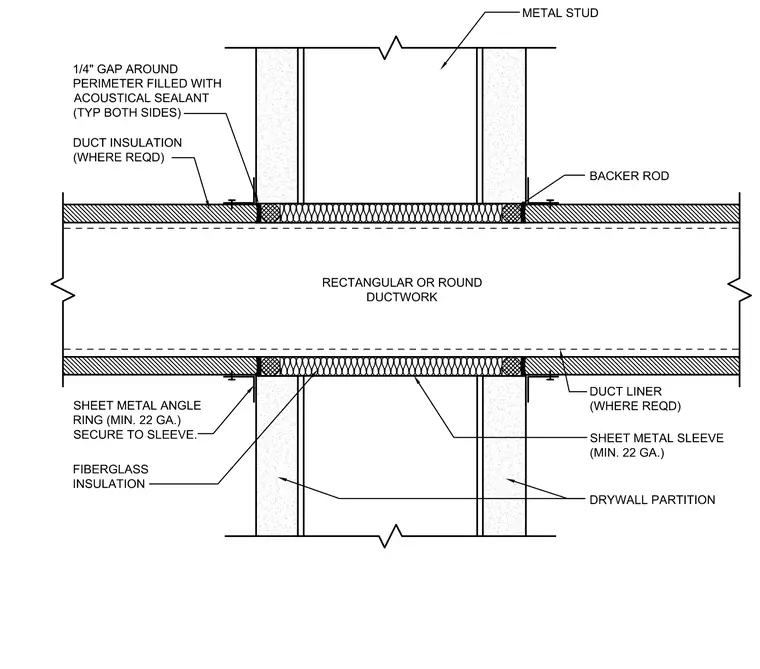

A rectangular or round duct passes through an opening in a drywall partition framed with metal studs, centered within a minimum 22-gauge sheet metal sleeve. The perimeter gap around the duct is maintained at 1/4 inch and is filled with backer rod and acoustical sealant on both sides. A minimum 22-gauge sheet metal angle ring is secured to the sleeve, and the annular space is packed with fiberglass insulation. Duct insulation and duct liner are installed where required.
FIBERGLASS INSULATION SHEET METAL ANGLE RING (MIN. 22 GA.) SECURE TO SLEEVE. DUCT INSULATION (WHERE REQD) METAL STUD SHEET METAL SLEEVE (MIN. 22 GA.) DRYWALL PARTITION RECTANGULAR OR ROUND DUCTWORK 1/4" GAP AROUND PERIMETER FILLED WITH ACOUSTICAL SEALANT (TYP BOTH SIDES) DUCT LINER (WHERE REQD) BACKER ROD
