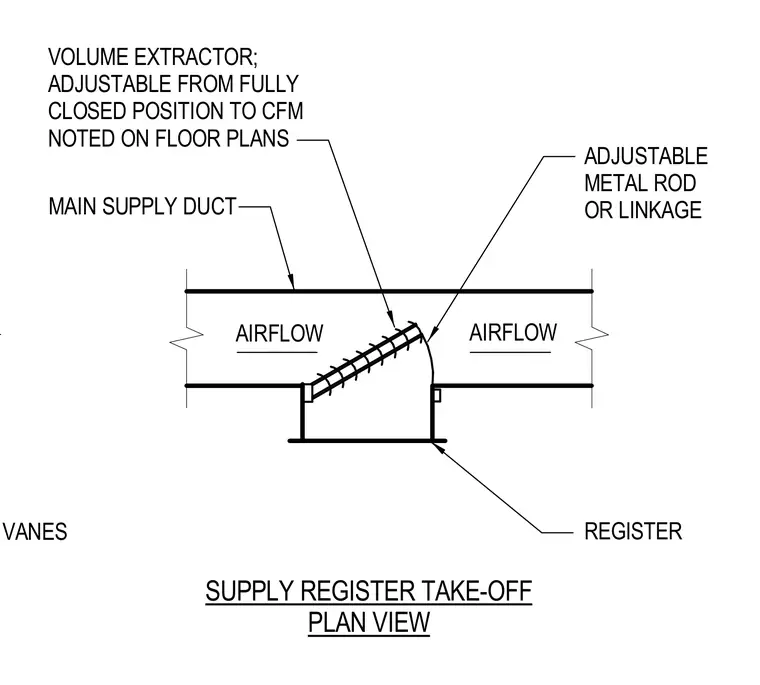

A supply register branch connects to a main supply duct with an internal volume extractor and turning vanes to direct airflow. The extractor blade adjusts via an adjustable metal rod or linkage from a fully closed position to the cubic feet per minute noted on floor plans. The register connects at the branch terminus to distribute conditioned air.
SUPPLY REGISTER TAKE-OFF PLAN VIEW ADJUSTABLE METAL ROD OR LINKAGE REGISTER VOLUME EXTRACTOR; ADJUSTABLE FROM FULLY CLOSED POSITION TO CFM NOTED ON FLOOR PLANS MAIN SUPPLY DUCT TURNING VANES AIRFLOW AIRFLOW
