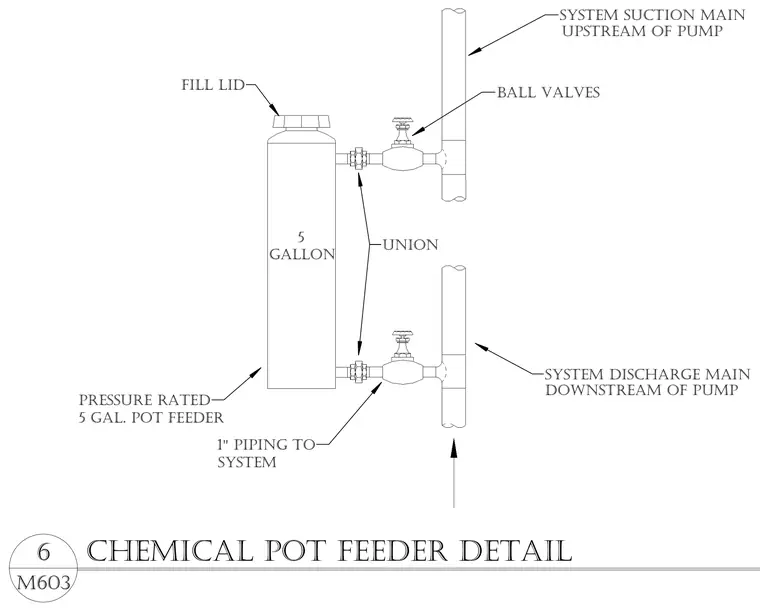

A five-gallon pressure rated chemical pot feeder connects to the main system piping with one-inch lines. The upper line ties into the system suction main upstream of the pump, while the lower line ties into the system discharge main downstream of the pump. Each connection incorporates a union and a ball valve for isolation and maintenance. A fill lid is located at the top of the tank for chemical introduction.
UNION BALL VALVES FILL LID 5 GAL. POT FEEDER PRESSURE RATED SYSTEM 1" PIPING TO GALLON 5 SYSTEM SUCTION MAIN SYSTEM DISCHARGE MAIN DOWNSTREAM OF PUMP UPSTREAM OF PUMP M603 6 CHEMICAL POT FEEDER DETAIL
