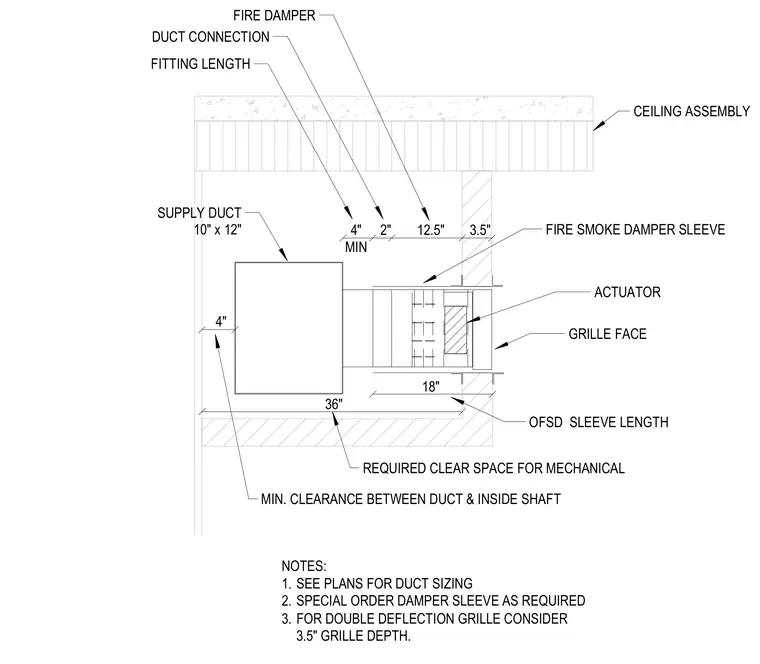

A supply duct measuring 10 inches by 12 inches connects to a fire smoke damper sleeve penetrating a partition wall near the ceiling assembly. The assembly requires a minimum clearance of 4 inches between the duct and the inside of the shaft, with a 36-inch required clear space for mechanical components. The fire smoke damper sleeve has an 18-inch combination length, featuring a 2-inch duct connection, a 12.5-inch fire damper section, and a 3.5-inch actuator and grille face zone. Special order damper sleeves are utilized as required, and double-deflection grilles account for a 3.5-inch grille depth.
NOTES: 1. SEE PLANS FOR DUCT SIZING 2. SPECIAL ORDER DAMPER SLEEVE AS REQUIRED 3. FOR DOUBLE DEFLECTION GRILLE CONSIDER 3.5" GRILLE DEPTH. ACTUATOR GRILLE FACE CEILING ASSEMBLY MIN. CLEARANCE BETWEEN DUCT & INSIDE SHAFT 4" 4" MIN FITTING LENGTH FIRE SMOKE DAMPER SLEEVE 2" DUCT CONNECTION OFSD SLEEVE LENGTH SUPPLY DUCT 10" x 12" REQUIRED CLEAR SPACE FOR MECHANICAL 12.5" FIRE DAMPER 3.5" 18" 36"
