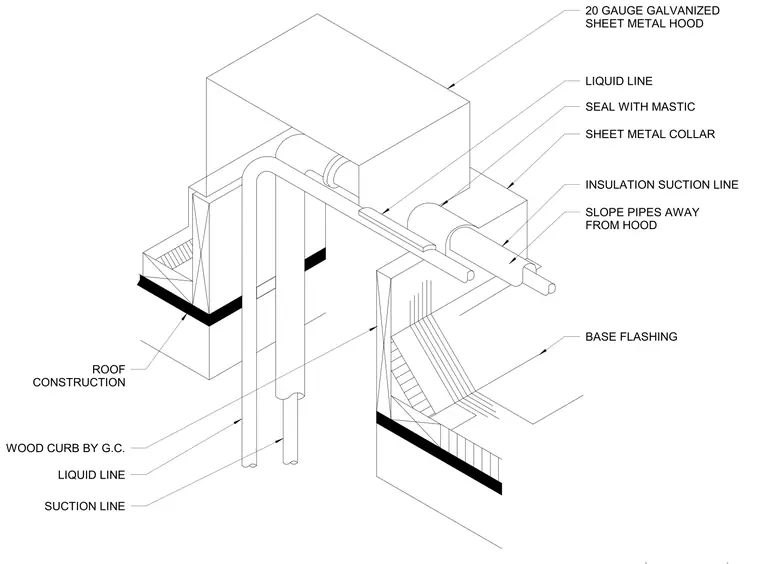

Refrigerant lines including a liquid line and an insulated suction line penetrate a roof assembly through a wood curb built by the general contractor. A twenty gauge galvanized sheet metal hood covers the penetration, complemented by a sheet metal collar sealed with mastic. Base flashing protects the junction between the wood curb and the roof construction. Pipes are sloped away from the hood to ensure proper drainage.
20 GAUGE GALVANIZED SHEET METAL HOOD LIQUID LINE SEAL WITH MASTIC SHEET METAL COLLAR INSULATION SUCTION LINE SLOPE PIPES AWAY FROM HOOD WOOD CURB BY G.C. BASE FLASHING ROOF CONSTRUCTION LIQUID LINE SUCTION LINE
