Mechanical · M-KE96Y

Pumps - Parallel Detail

Materials

Concrete Metal (misc.)Gypsum / Drywall

Elements

Bracing Drainage Connections / Plates

Connections

Bracing Connection

About this detail

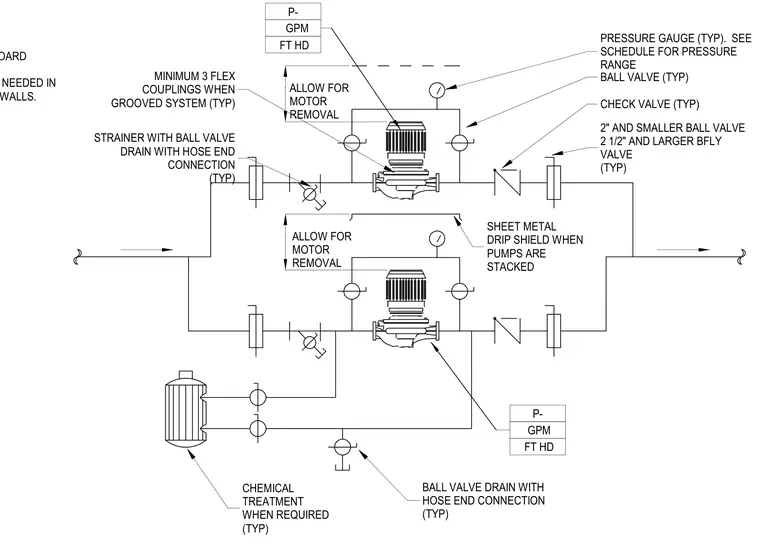

Parallel pump piping arrangement showing flow controls, isolation valves, and service clearances. The system incorporates ball valves for two-inch and smaller lines, butterfly valves for two-and-a-half-inch and larger lines, check valves, and pressure gauges with ranges per schedule. A minimum of three flexible couplings are required when utilizing a grooved piping system. Strainers include ball valve drains with hose end connections, and a sheet metal drip shield is installed when pumps are stacked. Chemical treatment loops and drain connections are provided as required, with clearance spaces allowed for motor removal.
