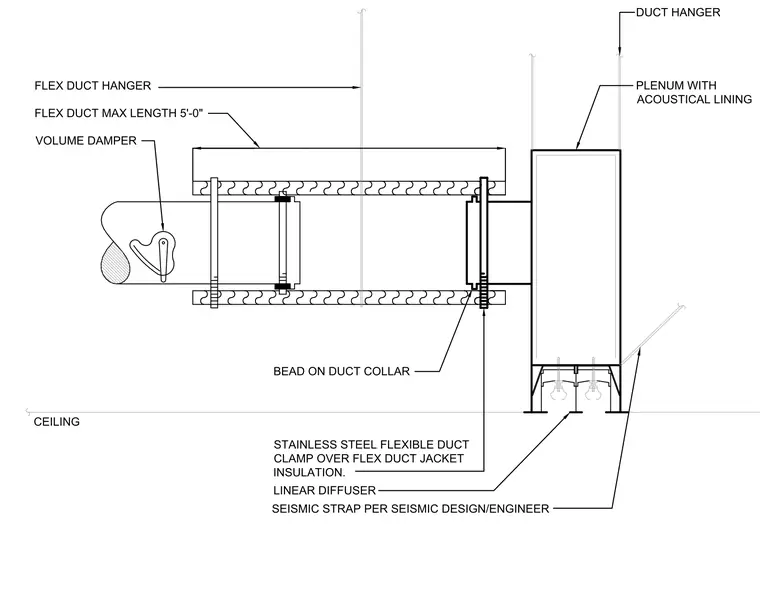

A volume damper controls airflow into a stainless steel flexible duct restricted to a maximum length of 5'-0". The flexible duct is secured with clamps over its jacket and insulation onto a bead on the duct collar. The opposite end connects to an acoustically lined plenum suspended by duct hangers. A linear diffuser is integrated into the bottom of the plenum, supported by seismic straps per structural requirements.
VOLUME DAMPER CEILING STAINLESS STEEL FLEXIBLE DUCT CLAMP OVER FLEX DUCT JACKET INSULATION. LINEAR DIFFUSER BEAD ON DUCT COLLAR FLEX DUCT MAX LENGTH 5'-0" FLEX DUCT HANGER PLENUM WITH ACOUSTICAL LINING SEISMIC STRAP PER SEISMIC DESIGN/ENGINEER DUCT HANGER
