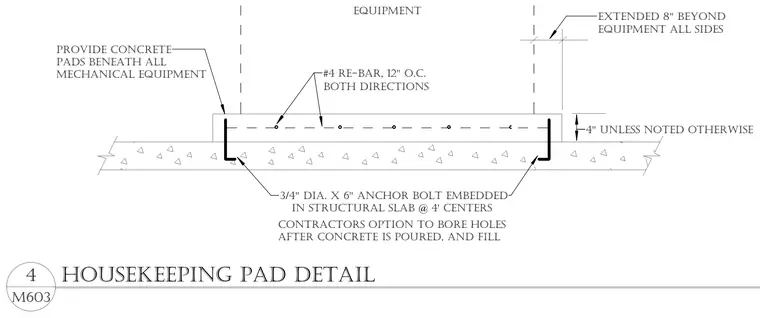

Concrete housekeeping pads are provided beneath all mechanical equipment and extend eight inches beyond the equipment on all sides. The pad features a typical thickness of four inches unless noted otherwise. Reinforcement consists of number four rebar spaced at twelve inches on center in both directions within the pad. Anchor bolts measuring three-quarters of an inch in diameter by six inches long are embedded in the structural slab at four-foot centers, with a contractor option to bore holes after the concrete is poured and fill them.
CONTRACTORS OPTION TO BORE HOLES AFTER CONCRETE IS POURED, AND FILL BOTH DIRECTIONS IN STRUCTURAL SLAB @ 4' CENTERS 3/4" DIA. X 6" ANCHOR BOLT EMBEDDED MECHANICAL EQUIPMENT PADS BENEATH ALL PROVIDE CONCRETE #4 RE-BAR, 12" O.C. EQUIPMENT 4" UNLESS NOTED OTHERWISE EQUIPMENT ALL SIDES EXTENDED 8" BEYOND M603 4 HOUSEKEEPING PAD DETAIL
