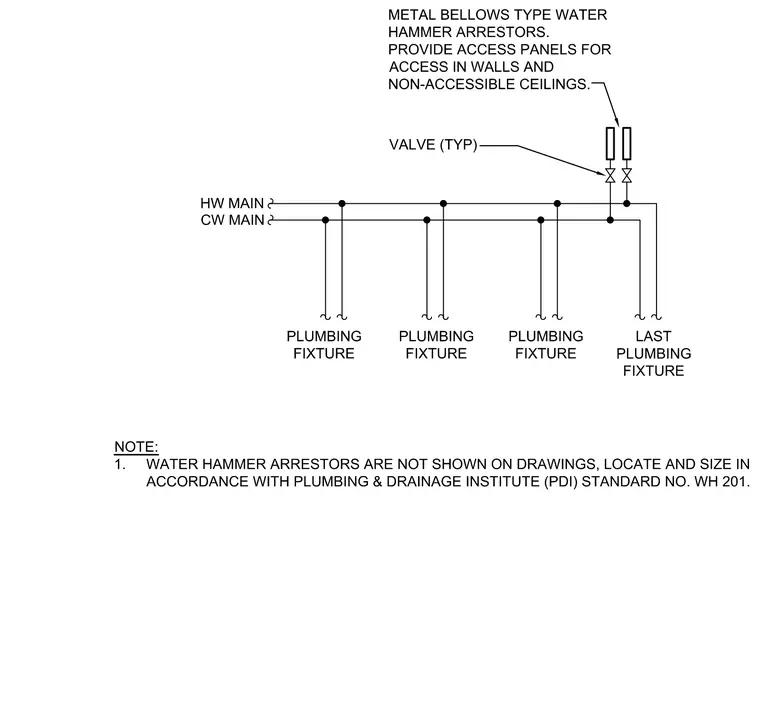

Metal bellows-type water hammer arrestors are installed on cold water and hot water mains serving plumbing fixtures in accordance with Plumbing and Drainage Institute standard WH 201. Typical isolation valves are positioned upstream of the arrestors. Access panels are required in walls and non-accessible ceilings to maintain the arrestor units.
NOTE: 1. WATER HAMMER ARRESTORS ARE NOT SHOWN ON DRAWINGS, LOCATE AND SIZE IN ACCORDANCE WITH PLUMBING & DRAINAGE INSTITUTE (PDI) STANDARD NO. WH 201. METAL BELLOWS TYPE WATER HAMMER ARRESTORS. PROVIDE ACCESS PANELS FOR ACCESS IN WALLS AND NON-ACCESSIBLE CEILINGS. PLUMBING FIXTURE PLUMBING FIXTURE PLUMBING FIXTURE LAST PLUMBING FIXTURE VALVE (TYP) CW MAIN HW MAIN
