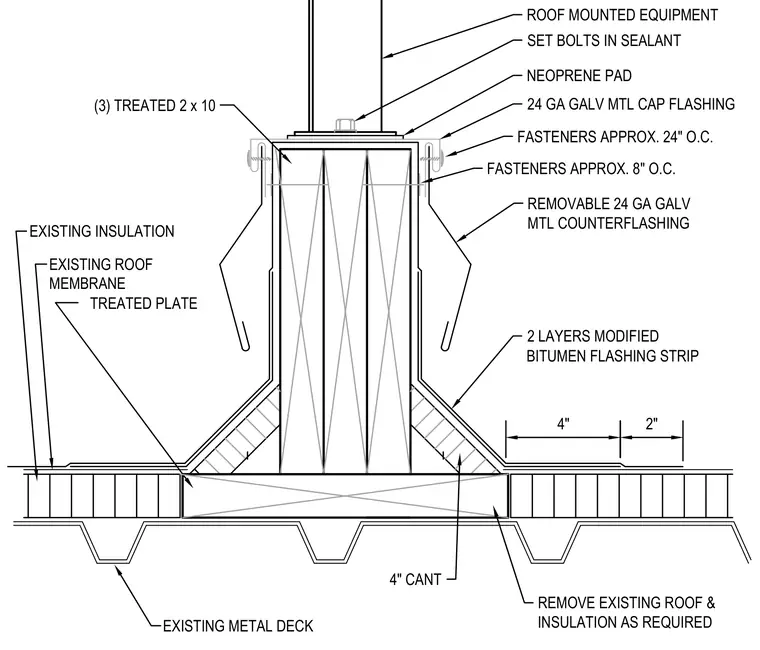

Roof-mounted equipment is supported on three treated 2x10 wood members set over a treated wood base plate, bearing on an existing metal deck with existing insulation and roof membrane removed as required. A neoprene pad sits beneath the equipment base, with anchor bolts set in sealant. A 4-inch cant strip is wrapped with two layers of modified bitumen flashing strip. A 24-gauge galvanized metal cap flashing covers the wood blocking, secured by fasteners spaced approximately 24 inches on center. A removable 24-gauge galvanized metal counterflashing extends down over the base flashing, secured by fasteners spaced approximately 8 inches on center.
4" 2" EXISTING METAL DECK EXISTING INSULATION TREATED PLATE (3) TREATED 2 x 10 EXISTING ROOF MEMBRANE 2 LAYERS MODIFIED BITUMEN FLASHING STRIP REMOVE EXISTING ROOF & INSULATION AS REQUIRED 4" CANT REMOVABLE 24 GA GALV MTL COUNTERFLASHING FASTENERS APPROX. 8" O.C. FASTENERS APPROX. 24" O.C. 24 GA GALV MTL CAP FLASHING NEOPRENE PAD SET BOLTS IN SEALANT ROOF MOUNTED EQUIPMENT
