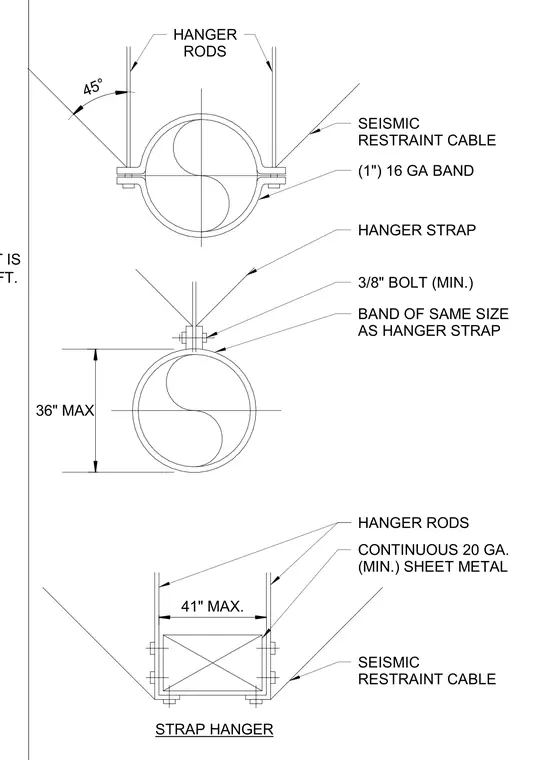

Round and rectangular HVAC ducts are suspended using hanger rods and straps secured with minimum three-eighths-inch bolts and sixteenth-gauge bands. Seismic restraint cables are anchored at forty-five-degree angles to prevent lateral displacement. Maximum spacing dimensions are restricted to thirty-six inches and forty-one inches depending on the configuration. Continuous twentieth-gauge sheet metal is utilized for strap hangers on rectangular ductwork.
MEMBER IF DUCT IS LESS THAN 4 SQFT. HANGER RODS SEISMIC RESTRAINT CABLE HANGER RODS 3/8" BOLT (MIN.) HANGER STRAP (1") 16 GA BAND BAND OF SAME SIZE AS HANGER STRAP SEISMIC RESTRAINT CABLE 45° 36" MAX 41" MAX. CONTINUOUS 20 GA. (MIN.) SHEET METAL STRAP HANGER
