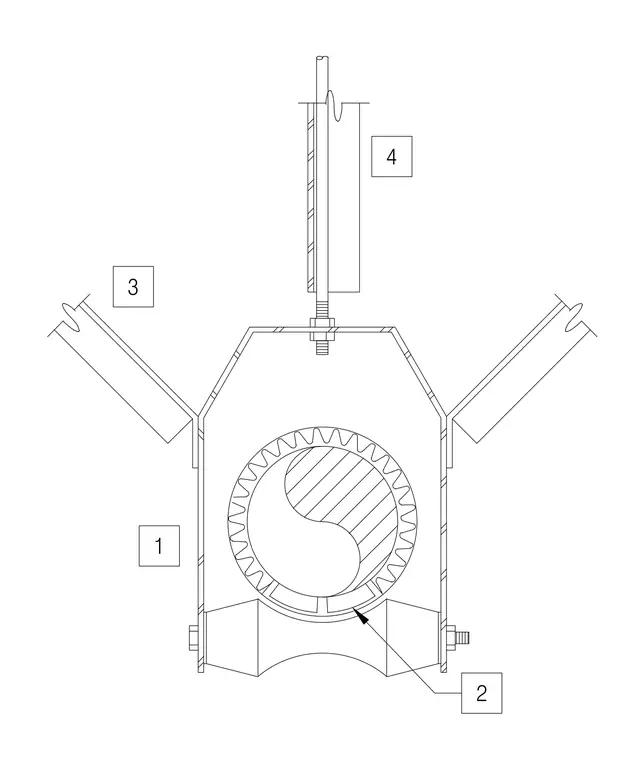

This assembly details a suspended mechanical support unit connected via a vertical threaded rod at the top secured with hex nuts. The main cylindrical body features internal channeled lining and a solid offset core. Angled structural brace members attach to the upper housing sides to provide lateral stability. Lower through-bolts secure the base components across the housing assembly.
