Mechanical · M-JZSPC

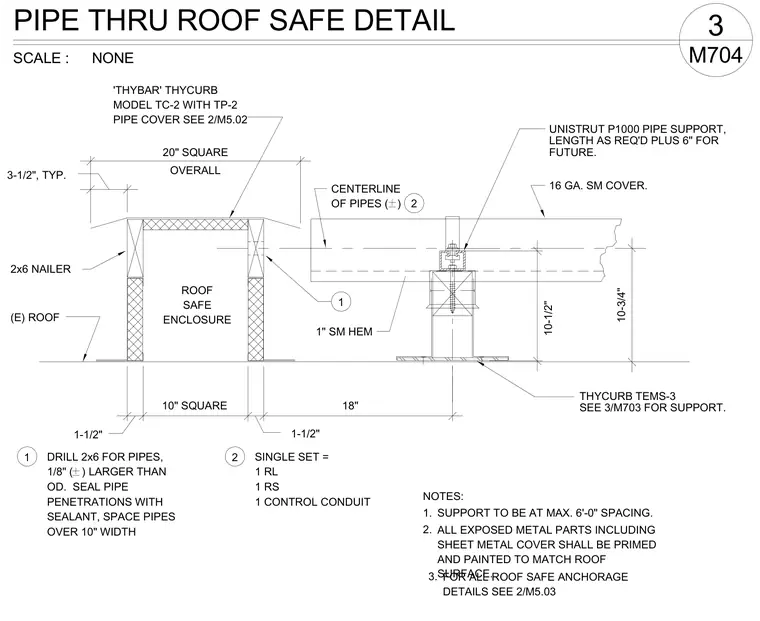

Pipe thru Roof Safe Detail

Materials

Metal (misc.)

Elements

Roofs Anchors / Embeds Roof / Floor Openings

Connections

Base Plate / Anchorage

About this detail

A pipe penetration through an existing roof utilizes a Thybar Thycurb model TC-2 roof safe enclosure with a TP-2 pipe cover and a 2x6 wood nailer. Internal pipe support is provided by a Unistrut P1000 channel mounted on a Thycurb TEMS-3 support spaced at a maximum of six feet on center. Wood nailers at the curb perimeter are drilled with holes one-eighth inch larger than the outer diameter of the pipes and sealed with sealant. All exposed metal components, including the sixteen-gauge sheet metal cover, are finished with primer and paint to match the adjacent roof surface.
