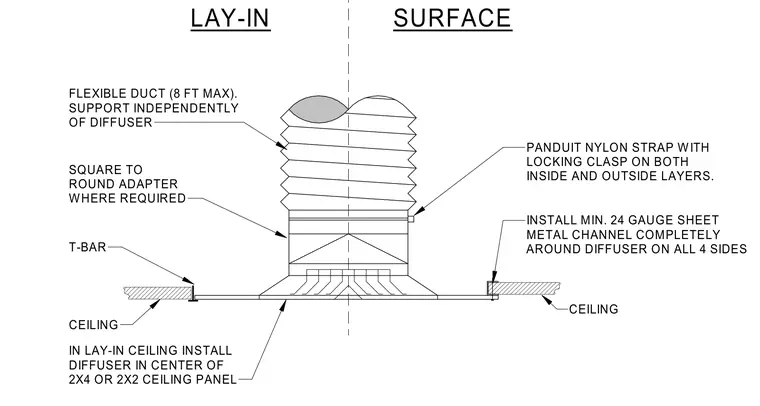

The ceiling diffuser connects to a flexible duct with a maximum length of 8 feet, which must be supported independently of the diffuser itself. A square to round adapter is used where required, secured with a nylon strap featuring a locking clasp on both inside and outside layers. In lay-in ceiling installations, the diffuser is centered within a 2x4 or 2x2 ceiling panel supported by T-bar grids. Surface-mount installations require a minimum 24-gauge sheet metal channel installed completely around the diffuser on all four sides.
SQUARE TO ROUND ADAPTER WHERE REQUIRED CEILING INSTALL MIN. 24 GAUGE SHEET METAL CHANNEL COMPLETELY AROUND DIFFUSER ON ALL 4 SIDES IN LAY-IN CEILING INSTALL DIFFUSER IN CENTER OF 2X4 OR 2X2 CEILING PANEL CEILING SURFACE LAY-IN T-BAR FLEXIBLE DUCT (8 FT MAX). SUPPORT INDEPENDENTLY OF DIFFUSER PANDUIT NYLON STRAP WITH LOCKING CLASP ON BOTH INSIDE AND OUTSIDE LAYERS.
