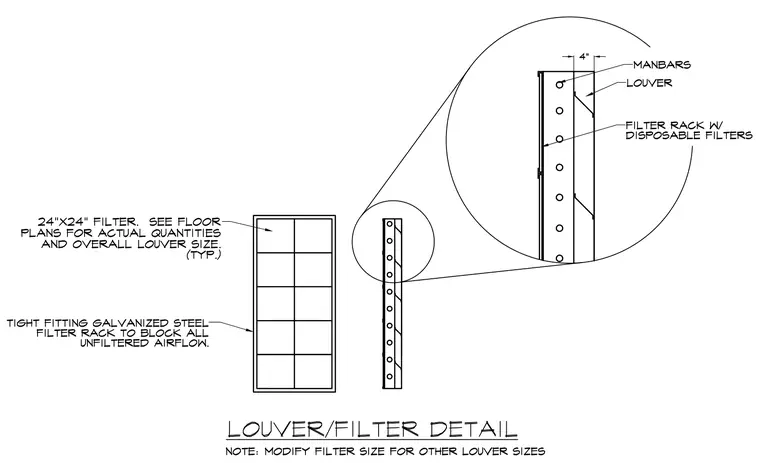

A mechanical louver features an integrated filter rack and disposable filters, designed with tight-fitting galvanized steel to block all unfiltered airflow. Twenty-four inch by twenty-four inch filters are specified typically, with exact quantities and overall louver sizes to be verified per floor plans. A magnified callout highlights the manbars, louver blades, and the four-inch clearance for the filter rack with disposable filters. Filter sizes must be modified for alternative louver dimensions.
