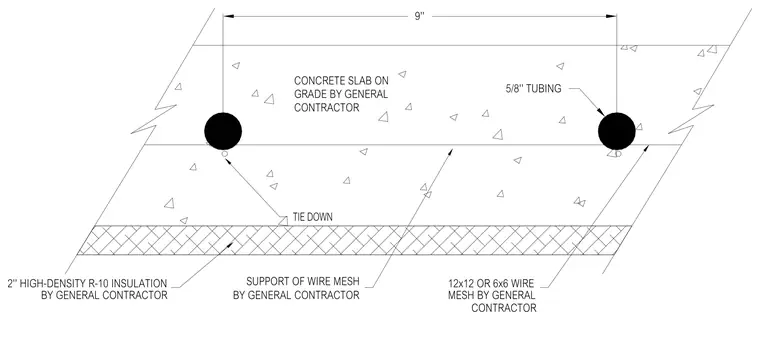

Snowmelt piping is embedded within a concrete slab on grade over two inches of high-density R-10 insulation. Five-eighths-inch tubing is secured using tie downs set at a nine-inch spacing. Twelve-by-twelve or six-by-six wire mesh is supported within the slab on grade.
9'' 2'' HIGH-DENSITY R-10 INSULATION BY GENERAL CONTRACTOR 12x12 OR 6x6 WIRE MESH BY GENERAL CONTRACTOR SUPPORT OF WIRE MESH BY GENERAL CONTRACTOR TIE DOWN 5/8'' TUBING CONCRETE SLAB ON GRADE BY GENERAL CONTRACTOR
