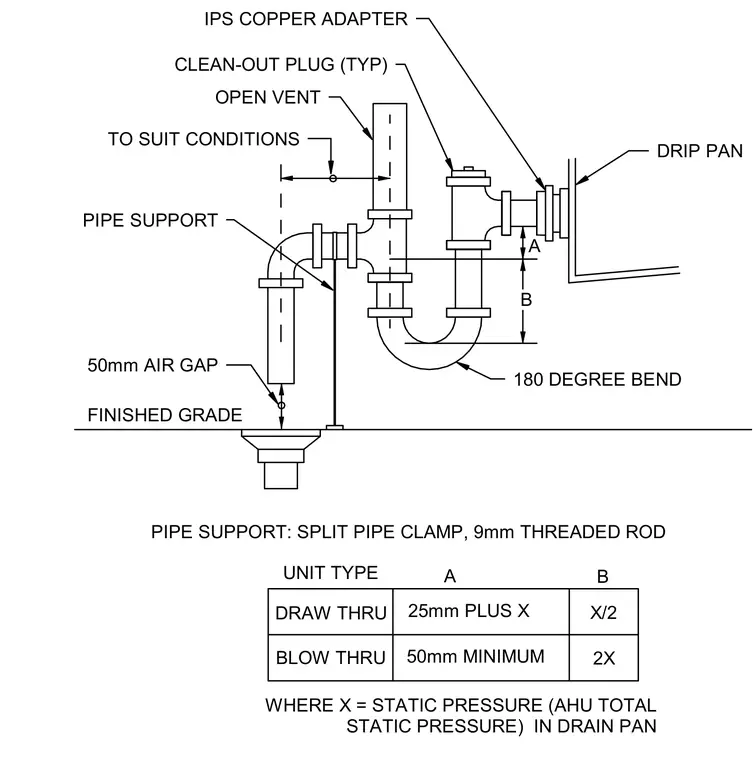

The condensate drain assembly connects to the drip pan using an IPS copper adapter and incorporates a P-trap with dimensions determined by the air handling unit static pressure. A clean-out plug is installed above the 180-degree bend, and an open vent extends upward with spacing sized to suit site conditions. The vertical drop terminates above finished grade with a 50mm air gap discharging into a floor drain or receptor. A split pipe clamp with a 9mm threaded rod secures the vertical pipe run. Sizing parameters for dimensions A and B vary depending on whether the unit is a draw-through or blow-through type, where X represents the total static pressure in the drain pan.
PIPE SUPPORT: SPLIT PIPE CLAMP, 9mm THREADED ROD B A DRAW THRU BLOW THRU 25mm PLUS X 50mm MINIMUM X/2 2X UNIT TYPE A B WHERE X = STATIC PRESSURE (AHU TOTAL STATIC PRESSURE) IN DRAIN PAN 180 DEGREE BEND FINISHED GRADE 50mm AIR GAP PIPE SUPPORT TO SUIT CONDITIONS OPEN VENT CLEAN-OUT PLUG (TYP) IPS COPPER ADAPTER DRIP PAN
