An in-line exhaust fan casing is suspended from the structure above using three-eighths-inch-diameter hanger rods connected to mounting brackets and isolators provided by the fan manufacturer. Lateral movement of the fan is restrained by four three-sixteenths-inch-diameter aircraft cable braces set at a maximum one-inch offset. The cable loops over a wire rope thimble and is secured with two U-bolt clips, maintaining one-half inch of slack to prevent vibration transmission to the building structure while restraining lateral displacement. A three-eighths-inch pin shackle connects the wire rope loop to a three-sixteenths-by-two-and-a-half-inch bent plate clip bolted directly to the fan assembly.

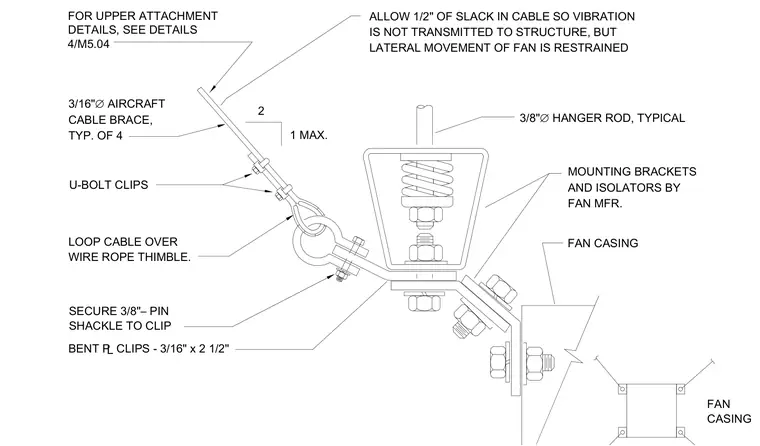

4/M5.04 FOR UPPER ATTACHMENT DETAILS, SEE DETAILS FAN CASING FAN MFR. AND ISOLATORS BY MOUNTING BRACKETS LATERAL MOVEMENT OF FAN IS RESTRAINED CASING FAN 3/8"∅ HANGER ROD, TYPICAL 1 MAX. 2 U-BOLT CLIPS 3/16"∅ AIRCRAFT CABLE BRACE, TYP. OF 4 L SHACKLE TO CLIP SECURE 3/8"– PIN WIRE ROPE THIMBLE. LOOP CABLE OVER BENT P CLIPS - 3/16" x 2 1/2" ALLOW 1/2" OF SLACK IN CABLE SO VIBRATION IS NOT TRANSMITTED TO STRUCTURE, BUT
