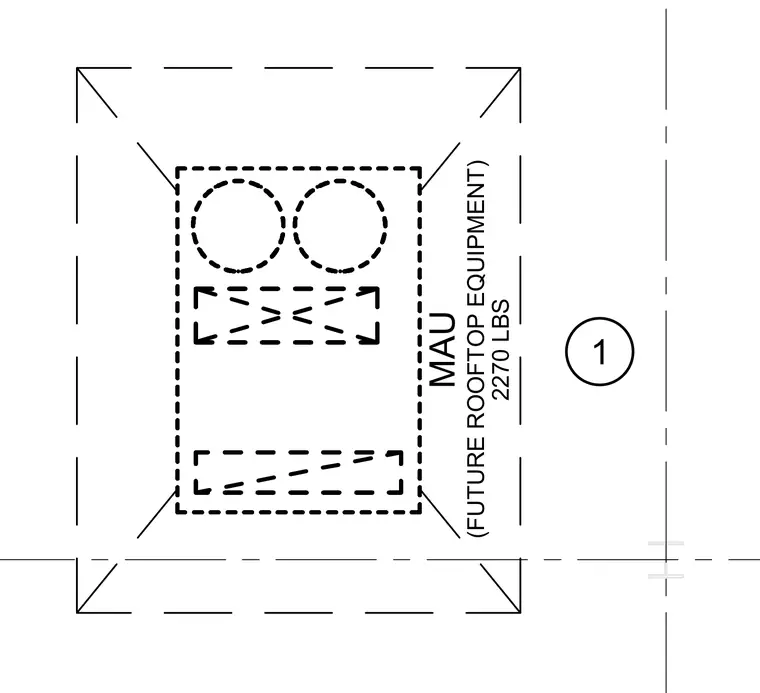

A future rooftop makeup air unit with a weight of 2270 pounds is positioned on the roof plan. Dashed lines outline the equipment footprint and internal components including circular and rectangular openings. Grid lines intersect near the unit location.
