An appliance connects to branch piping sized per plan using rigid pipe matching the unit connection size. The assembly incorporates a shut-off valve, an approved medium pressure regulator equipped with a vent limiting device within ten pipe diameters maximum, a ground joint union, and a test tee. An eighteen-inch maximum flexible gas connector links the regulator train to the appliance. A drip leg with an integrated test tee is provided at the bottom of the vertical branch piping drop, and all work is coordinated with the International Fuel Gas Code.

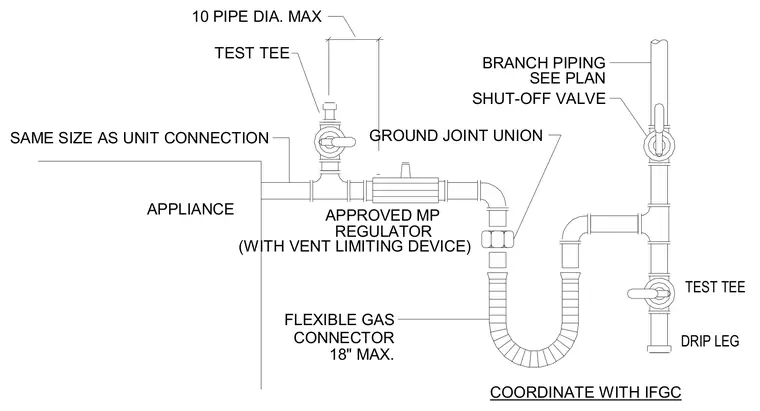

APPLIANCE FLEXIBLE GAS CONNECTOR 18" MAX. SAME SIZE AS UNIT CONNECTION GROUND JOINT UNION SHUT-OFF VALVE BRANCH PIPING SEE PLAN DRIP LEG TEST TEE APPROVED MP TEST TEE REGULATOR COORDINATE WITH IFGC 10 PIPE DIA. MAX (WITH VENT LIMITING DEVICE)
