Mechanical · M-JH56D

Heat Recovery Unit Arrangement and Dimensions

About this detail

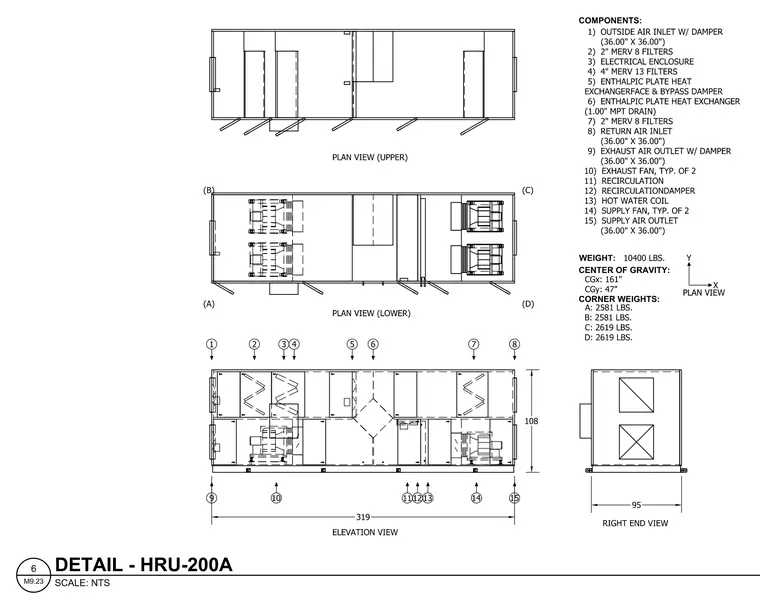

Mechanical layout, dimensions, and component schedule for heat recovery unit HRU-200A. The unit measures 319 inches long by 95 inches wide by 108 inches high, with a total operating weight of 10,400 lbs and a center of gravity located at 161 inches on the X-axis and 47 inches on the Y-axis. Corner weights are detailed as 2,581 lbs at points A and B, and 2,619 lbs at points C and D. Fifteen numbered components are scheduled, including outside air and return air inlets with 36-inch by 36-inch dampers, MERV 8 and MERV 13 filters, an electrical enclosure, an enthalpic plate heat exchanger with face and bypass damper and a 1.00-inch male pipe thread drain, an exhaust fan, recirculation dampers, a hot water coil, and supply fans. The arrangement is documented through upper and lower plan views, an elevation view, and a right end view.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
