Mechanical · M-JH2TW

Notes:

Elements

About this detail

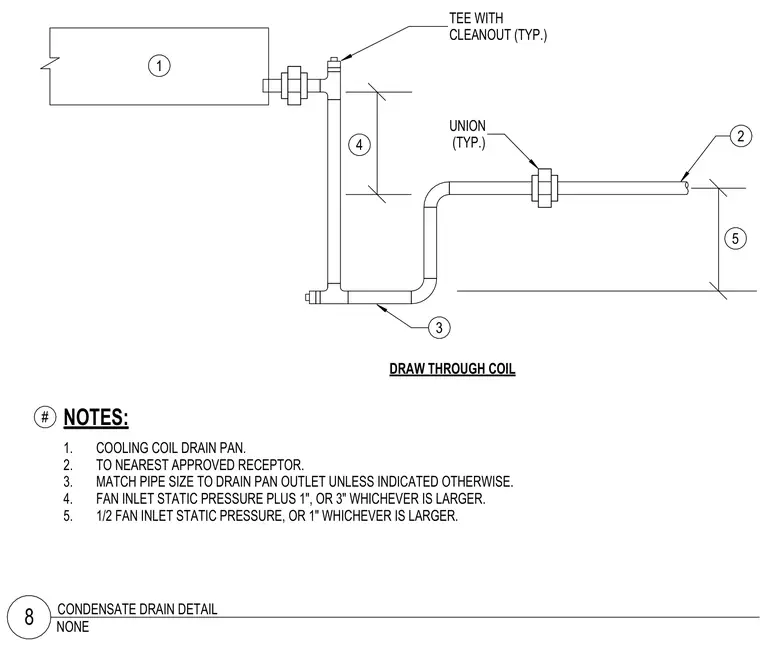

A condensate drain piping configuration for a draw-through cooling coil. The drainage assembly connects directly to the cooling coil drain pan and routes through a properly sized vertical drop with a cleanout tee, a P-trap, and a union for maintenance access. Dimensioned vertical offsets determine the trap seal depth based on fan inlet static pressure. The piping discharges to the nearest approved receptor, matching the pipe size to the drain pan outlet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
