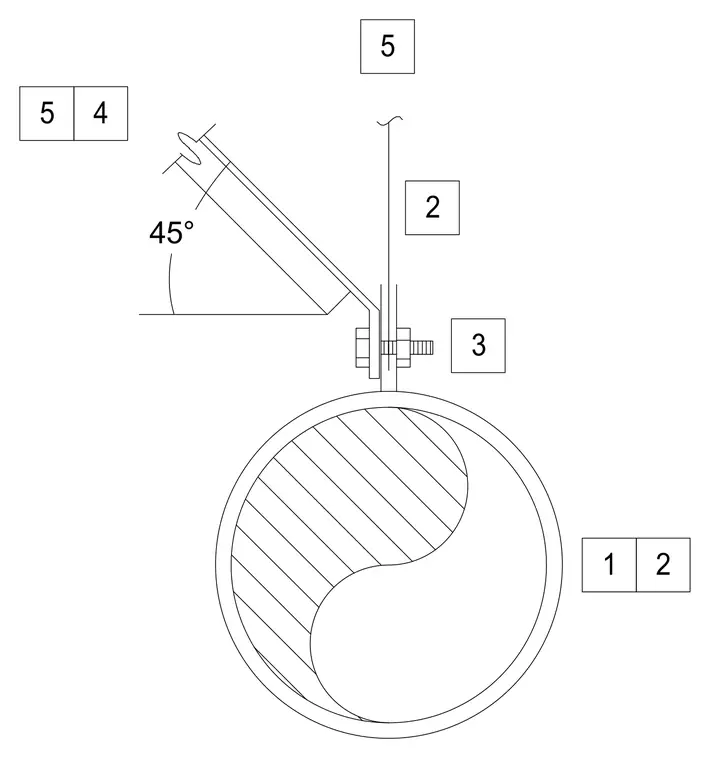

A round duct is suspended by a vertical hanger connected with a bolt assembly. A diagonal seismic brace angles upward at forty-five degrees and fastens to the hanger strap. The brace attachment utilizes bolts, nuts, and washers to secure the structural support framing.
