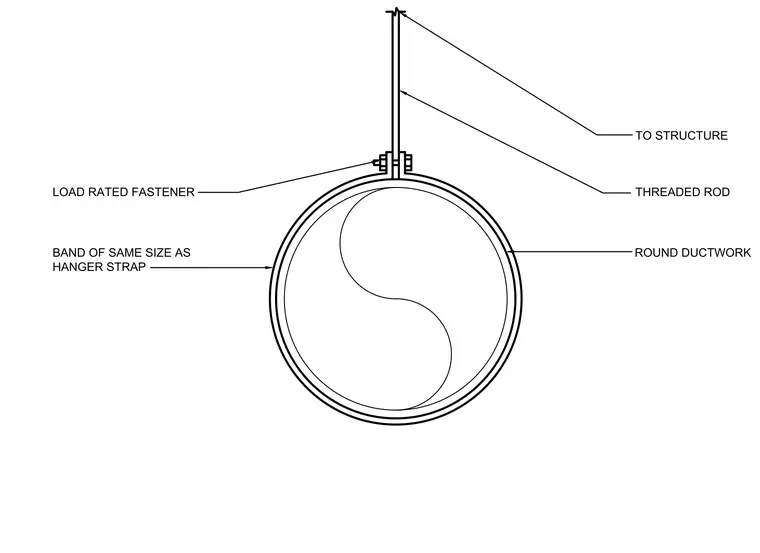

Round ductwork is suspended from the overhead structure using a threaded rod connected to a load-rated fastener. A band of the same size as the hanger strap wraps around the duct and secures to the threaded rod assembly.
THREADED ROD ROUND DUCTWORK LOAD RATED FASTENER BAND OF SAME SIZE AS HANGER STRAP TO STRUCTURE
