Suspended piping is supported from overhead structure using specified anchors or inserts connected to a specified hanger rod. The rod secures a pipe hanger or a pipe clamp, ten gauge strap, or U-bolt. Insulated pipes incorporate a specified pipe shield, while rack-mounted configurations utilize a Unistrut pipe rack.

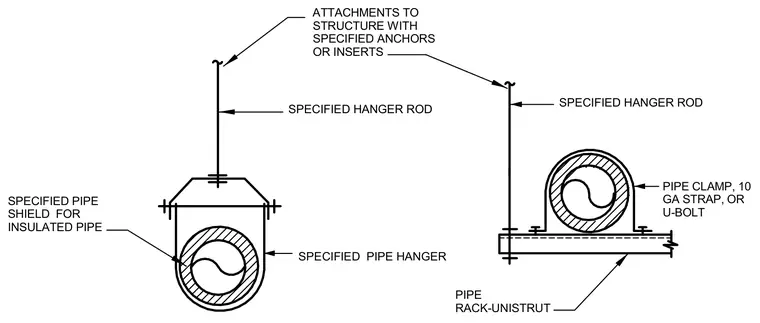

ATTACHMENTS TO STRUCTURE WITH SPECIFIED ANCHORS OR INSERTS PIPE CLAMP, 10 GA STRAP, OR U-BOLT PIPE RACK-UNISTRUT SPECIFIED PIPE HANGER SPECIFIED PIPE SHIELD FOR INSULATED PIPE SPECIFIED HANGER ROD SPECIFIED HANGER ROD
