Mechanical · M-J6C7V

Split System Fancoil Schematic

Elements

About this detail

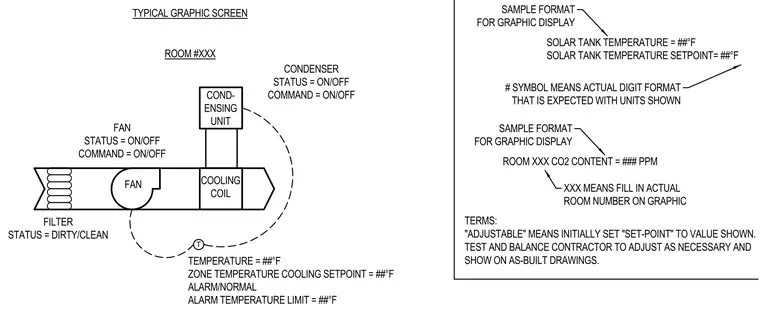

A schematic diagram outlines the monitoring and command interface for a split system fan coil unit. The graphic display tracks filter status, fan operation status and command, cooling coil performance, and condensing unit status and command. Zone temperature, cooling setpoints, and alarm conditions are monitored via a temperature sensor. Additional parameters include solar tank temperatures and room carbon dioxide levels.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
