Mechanical · M-J6929

HVAC Equipment Seismic Bracing and Hanger Rod Details

Materials

Steel

Elements

Bracing Connections / Plates Reinforcing

Connections

Bracing Connection Rebar Splice / Development

About this detail

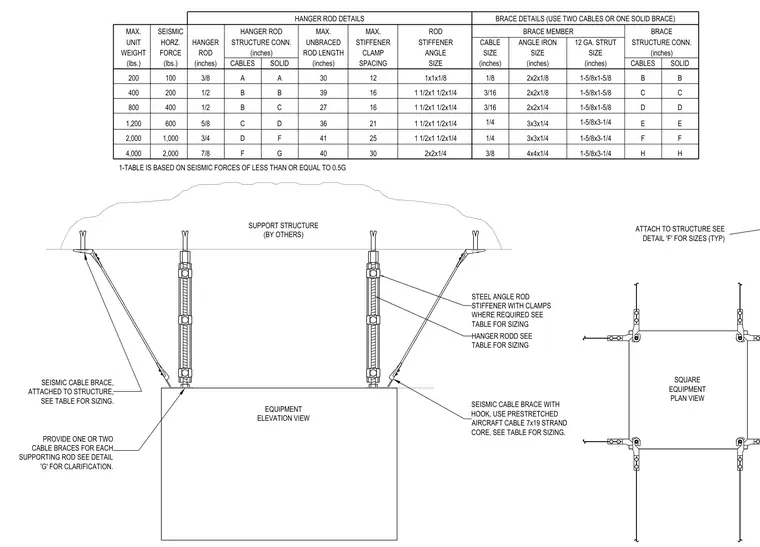

Suspended mechanical equipment is anchored to overhead structure using hanger rods and seismic cable braces sized according to unit weight and horizontal seismic forces. Hanger rod details specify rod diameters, unbraced rod lengths, maximum clamp spacings, and steel angle stiffener sizes. Brace details specify prestretched aircraft cable sizes, angle iron brace members, or 12-gauge strut sizes attached to the structure.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
