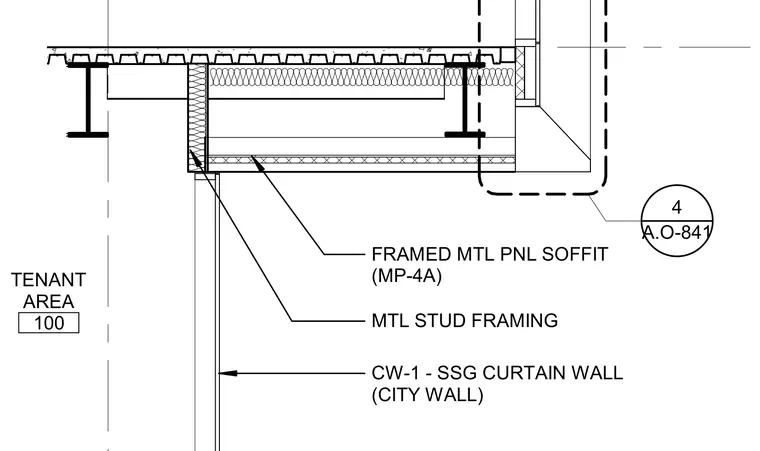

An SSG curtain wall terminates at a framed metal panel soffit with metal stud framing. The assembly connects to structural steel framing supporting the ceiling and floor deck above. A framed metal panel system designated MP-4A clads the soffit.
CW-1 - SSG CURTAIN WALL (CITY WALL) TENANT AREA 100 FRAMED MTL PNL SOFFIT (MP-4A) MTL STUD FRAMING A.O-841 4
