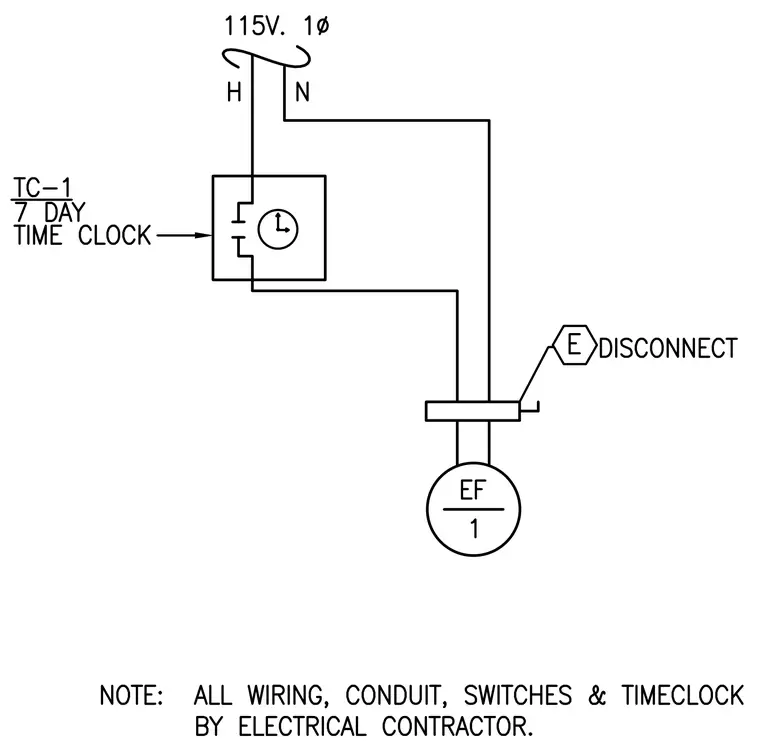

An electrical schematic shows a 115V single-phase power supply connecting to a seven-day time clock designated as TC-1. The circuit routes through a local electrical disconnect switch before supplying power to exhaust fan EF-1. A drawing note specifies that all wiring, conduit, switches, and the time clock are to be provided and installed by the electrical contractor.
