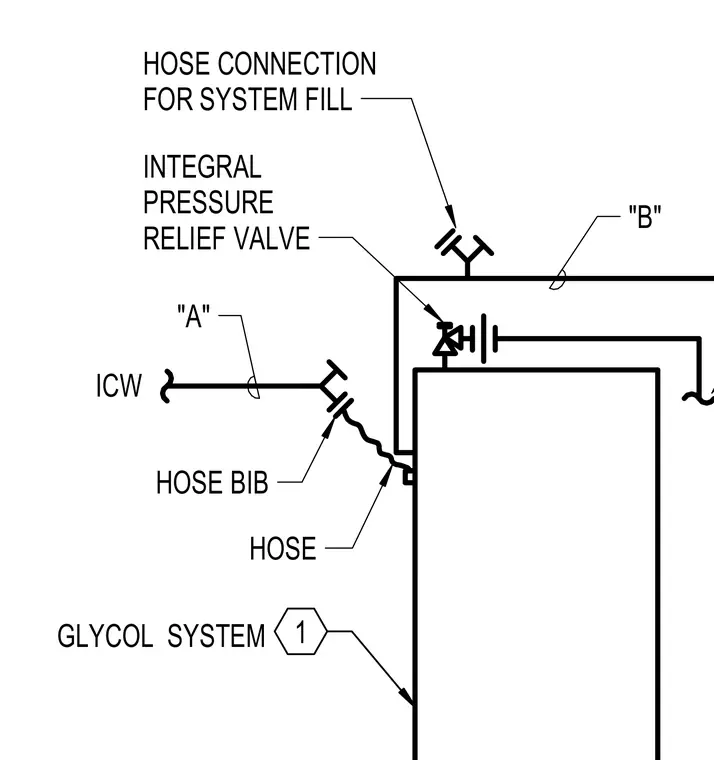

An industrial cold water supply line connects to the glycol system via a hose bib and hose, providing a designated hose connection for system filling. An integral pressure relief valve is incorporated into the piping arrangement to manage overpressure conditions.
"B" "A" HOSE HOSE BIB ICW HOSE CONNECTION FOR SYSTEM FILL 1 INTEGRAL PRESSURE RELIEF VALVE GLYCOL SYSTEM
