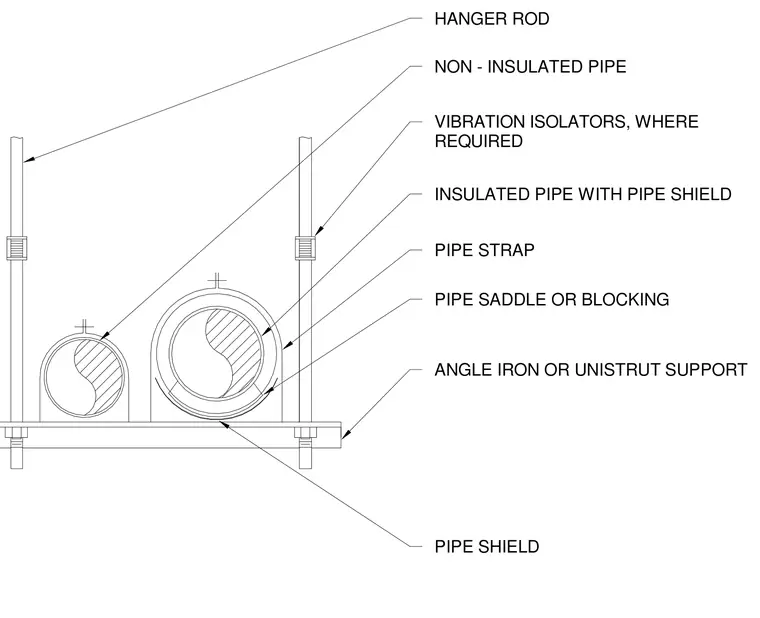

Multiple pipes are supported by an angle iron or Unistrut member suspended from hanger rods on each side. Vibration isolators are included on the hanger rods where required. Non-insulated pipes are secured with pipe straps, while insulated pipes are protected by pipe shields, pipe saddles, or blocking.
HANGER ROD NON - INSULATED PIPE VIBRATION ISOLATORS, WHERE REQUIRED INSULATED PIPE WITH PIPE SHIELD PIPE STRAP PIPE SADDLE OR BLOCKING ANGLE IRON OR UNISTRUT SUPPORT PIPE SHIELD
