Domestic Cold Water and Recirculation Piping Schematic

About this detail

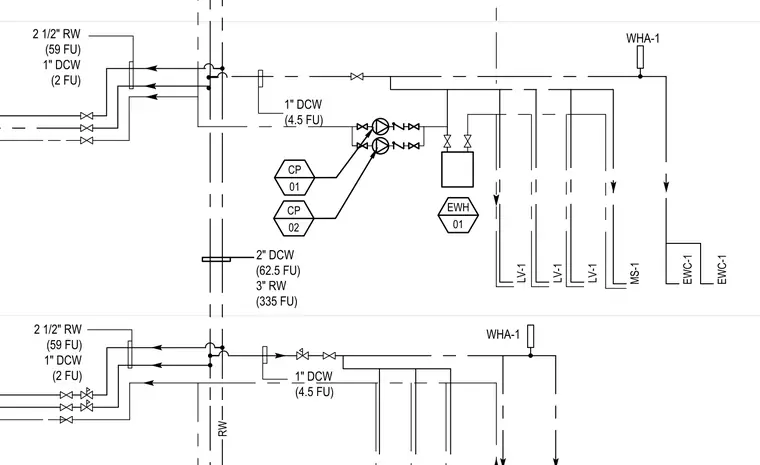

This plumbing schematic details domestic cold water and recirculation piping networks with associated fixture unit allocations. A 1-inch domestic cold water line feeds into the system at 4.5 fixture units, alongside a 2-inch domestic cold water main rated at 62.5 fixture units and a 3-inch recirculation water line at 335 fixture units. Additional branches connect to equipment such as electric water heaters, circulating pumps labeled CP-01 and CP-02, water heater accelerators, and various risers feeding lavatories, mop sinks, and electric water coolers.
