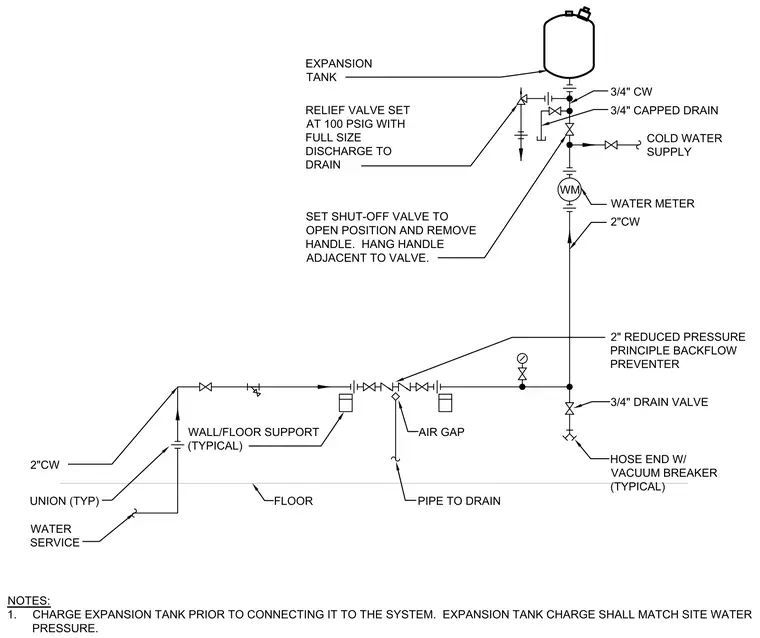

The cold water supply line enters through a two-inch water service pipe with typical unions and wall or floor supports. A two-inch water meter measures flow before the line branches into a two-inch reduced pressure principle backflow preventer with a pipe discharging to a drain through an air gap. A three-quarter-inch drain valve and a hose end with a vacuum breaker provide maintenance and drainage access. The upper line connects to an expansion tank and includes a relief valve set at one hundred psig with full-size discharge to the drain, alongside a three-quarter-inch capped drain. The shut-off valve is set to the open position with its handle removed and hung adjacent to the valve. Notes require charging the expansion tank prior to system connection to match site water pressure.
WATER SERVICE UNION (TYP) WALL/FLOOR SUPPORT (TYPICAL) COLD WATER SUPPLY FLOOR PIPE TO DRAIN AIR GAP HOSE END W/ VACUUM BREAKER (TYPICAL) 3/4" DRAIN VALVE 2" REDUCED PRESSURE PRINCIPLE BACKFLOW PREVENTER RELIEF VALVE SET AT 100 PSIG WITH FULL SIZE DISCHARGE TO DRAIN EXPANSION TANK 2"CW WM 2"CW SET SHUT-OFF VALVE TO OPEN POSITION AND REMOVE HANDLE. HANG HANDLE ADJACENT TO VALVE. 3/4" CW 3/4" CAPPED DRAIN WATER METER NOTES: 1. CHARGE EXPANSION TANK PRIOR TO CONNECTING IT TO THE SYSTEM. EXPANSION TANK CHARGE SHALL MATCH SITE WATER PRESSURE.
