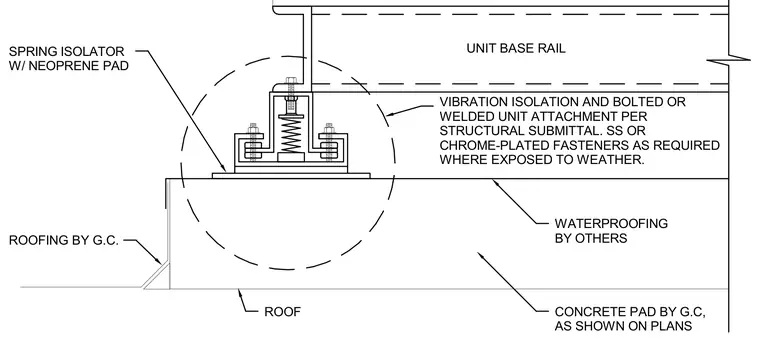

An air handling unit base rail mounts to a concrete equipment pad using a spring isolator equipped with a neoprene pad. The assembly includes stainless steel or chrome-plated fasteners as required where exposed to weather. Roofing and waterproofing are provided by the general contractor, with vibration isolation and bolted or welded unit attachment executed per structural submittal.
WATERPROOFING BY OTHERS CONCRETE PAD BY G.C, AS SHOWN ON PLANS SPRING ISOLATOR W/ NEOPRENE PAD ROOFING BY G.C. ROOF VIBRATION ISOLATION AND BOLTED OR WELDED UNIT ATTACHMENT PER STRUCTURAL SUBMITTAL. SS OR CHROME-PLATED FASTENERS AS REQUIRED WHERE EXPOSED TO WEATHER. UNIT BASE RAIL
