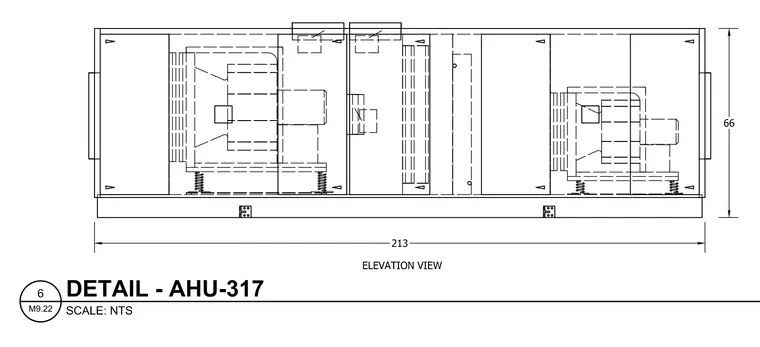

This elevation drawing shows air handling unit AHU-317 with an overall length of two hundred thirteen inches and a height of sixty-six inches. The equipment assembly includes internal fan motor components, filter sections, dampening springs, and casing connections. The unit sits on a structural base channel.
