This roof-mounted duct support installation detail utilizes 18-gauge sheet metal wrapped with rigid board insulation and continuous galvanized sheet metal studs. The assembly is anchored with four-inch by four-inch by one-quarter-inch steel plates welded to one-and-a-half-inch by one-and-a-half-inch by one-quarter-inch structural members. Pitch pockets are provided by the mechanical contractor at the roof penetration points with details coordinated through architectural drawings. Fiberboard insulation lines the interior of the duct framing enclosure with a minimum thirty-degree slope configuration.

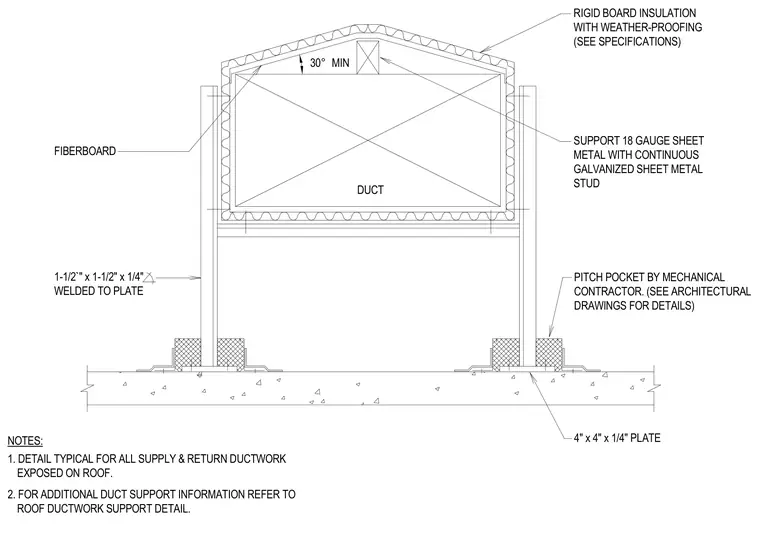

ROOF DUCTWORK SUPPORT DETAIL. EXPOSED ON ROOF. 2. FOR ADDITIONAL DUCT SUPPORT INFORMATION REFER TO 1. DETAIL TYPICAL FOR ALL SUPPLY & RETURN DUCTWORK NOTES: 1-1/2`" x 1-1/2" x 1/4" FIBERBOARD WELDED TO PLATE DUCT 30° MIN DRAWINGS FOR DETAILS) 4" x 4" x 1/4" PLATE WITH WEATHER-PROOFING RIGID BOARD INSULATION PITCH POCKET BY MECHANICAL GALVANIZED SHEET METAL METAL WITH CONTINUOUS SUPPORT 18 GAUGE SHEET CONTRACTOR. (SEE ARCHITECTURAL STUD (SEE SPECIFICATIONS)
