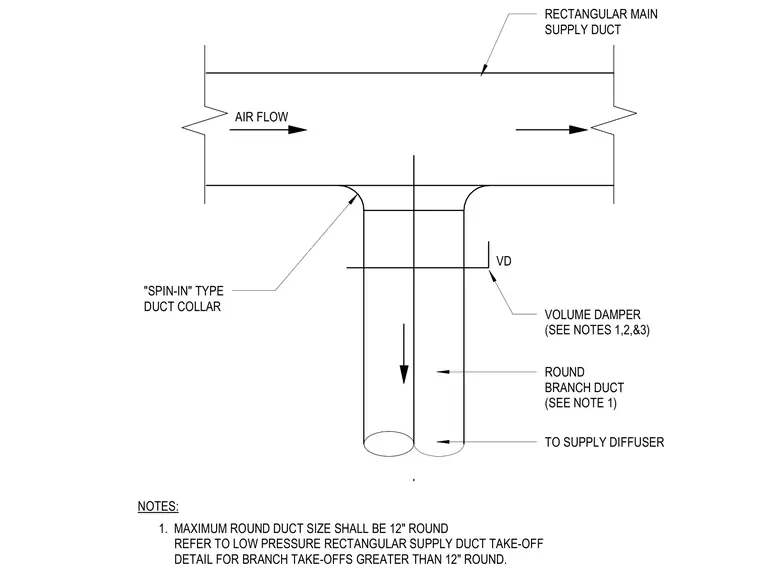

A round branch duct connects to a rectangular main supply duct using a spin-in type duct collar. A volume damper is installed within the round branch duct to control airflow to the supply diffuser. The maximum round branch duct size is limited to twelve inches in diameter, with larger take-offs requiring a separate low-pressure detail reference.
RECTANGULAR MAIN SUPPLY DUCT AIR FLOW VD VOLUME DAMPER (SEE NOTES 1,2,&3) ROUND BRANCH DUCT (SEE NOTE 1) NOTES: 1. MAXIMUM ROUND DUCT SIZE SHALL BE 12" ROUND REFER TO LOW PRESSURE RECTANGULAR SUPPLY DUCT TAKE-OFF DETAIL FOR BRANCH TAKE-OFFS GREATER THAN 12" ROUND. TO SUPPLY DIFFUSER "SPIN-IN" TYPE DUCT COLLAR
