Straight Inlet and Outlet Piping Diagram

Elements

About this detail

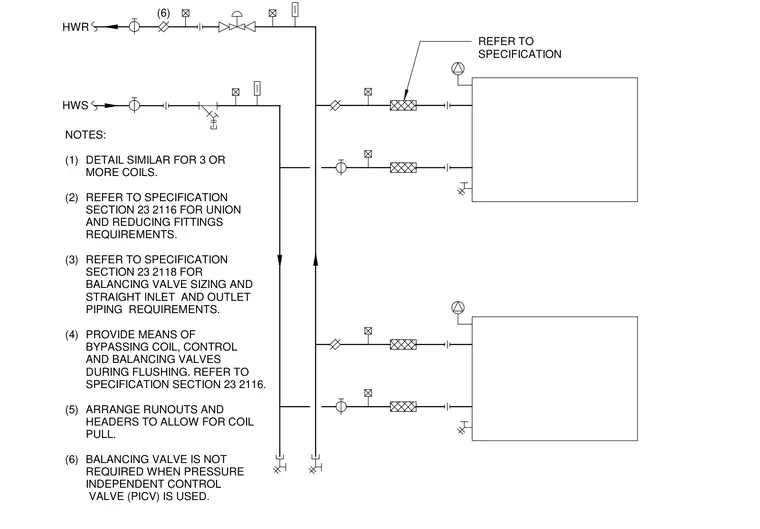

This diagram details the piping layout for heating water supply and return connections to coils, incorporating balancing valves, control valves, and unions per specification sections 23 2116 and 23 2118. Runouts and headers are arranged to allow for coil pull, and bypass means are provided during system flushing. Pressure independent control valves may be used in lieu of balancing valves.
