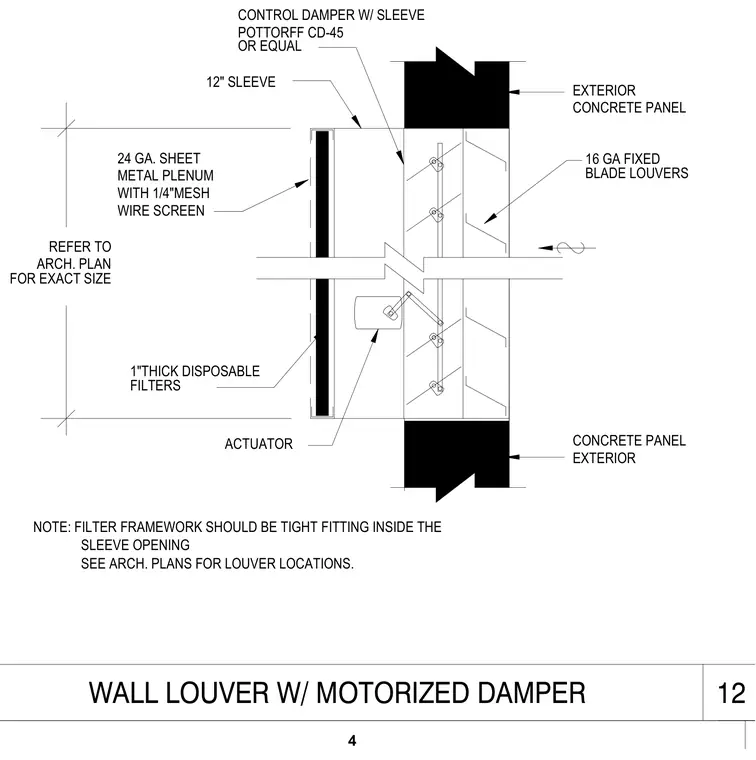

A wall louver and motorized control damper are installed within a twelve-inch sleeve passing through an exterior concrete panel. The assembly features sixteen-gauge fixed blade louvers on the exterior face and a control damper with an actuator. On the interior side, a twenty-four-gauge sheet metal plenum houses one-inch thick disposable filters and a one-quarter-inch mesh wire screen. The filter framework must fit tightly inside the sleeve opening, with exact sizing and locations referenced from the architectural plans.
WITH 1/4"MESH WIRE SCREEN 1"THICK DISPOSABLE FILTERS METAL PLENUM 24 GA. SHEET CONCRETE PANEL EXTERIOR REFER TO ARCH. PLAN FOR EXACT SIZE NOTE: FILTER FRAMEWORK SHOULD BE TIGHT FITTING INSIDE THE SLEEVE OPENING 16 GA FIXED BLADE LOUVERS SEE ARCH. PLANS FOR LOUVER LOCATIONS. ACTUATOR POTTORFF CD-45 CONTROL DAMPER W/ SLEEVE OR EQUAL 12" SLEEVE CONCRETE PANEL EXTERIOR 12 WALL LOUVER W/ MOTORIZED DAMPER 4
