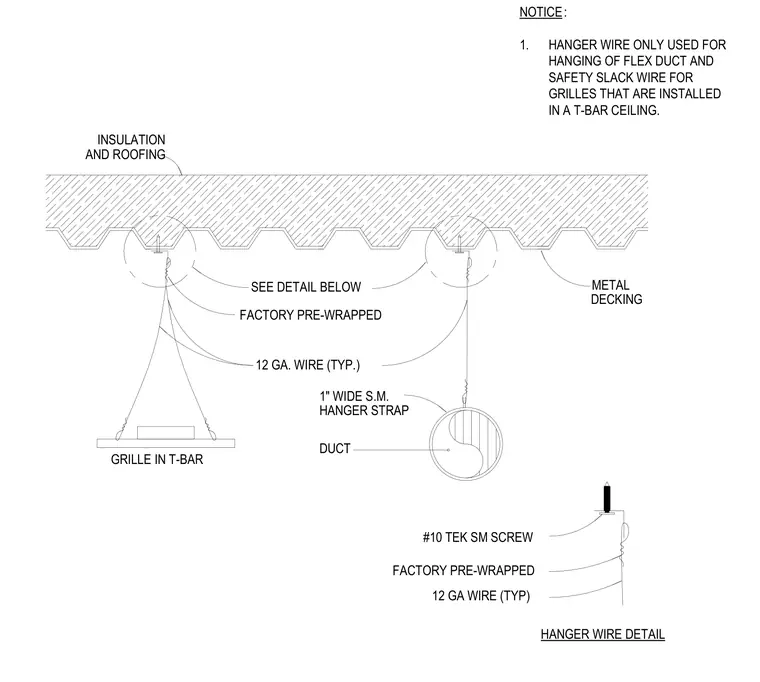

Flex ducts and ceiling grilles suspend from metal roof decking using twelve gauge factory pre-wrapped hanger wires and one-inch wide sheet metal hanger straps. Number ten Tek sheet metal screws anchor the hanger wires to the underside of the metal deck ribs. Additional safety slack wires support grilles installed in T-bar ceilings.
HANGER WIRE DETAIL DECKING METAL FACTORY PRE-WRAPPED 1" WIDE S.M. HANGER STRAP DUCT SEE DETAIL BELOW 12 GA. WIRE (TYP.) GRILLE IN T-BAR NOTICE: 1. HANGER WIRE ONLY USED FOR HANGING OF FLEX DUCT AND SAFETY SLACK WIRE FOR GRILLES THAT ARE INSTALLED IN A T-BAR CEILING. INSULATION AND ROOFING FACTORY PRE-WRAPPED 12 GA WIRE (TYP) #10 TEK SM SCREW
