Mechanical · M-HGGBB

Isolated Pipe Penetration

Materials

Elements

Partitions Roofs Ceilings Floors / Slabs Waterproofing / Flashing Insulation Reinforcing Roof / Floor Openings

About this detail

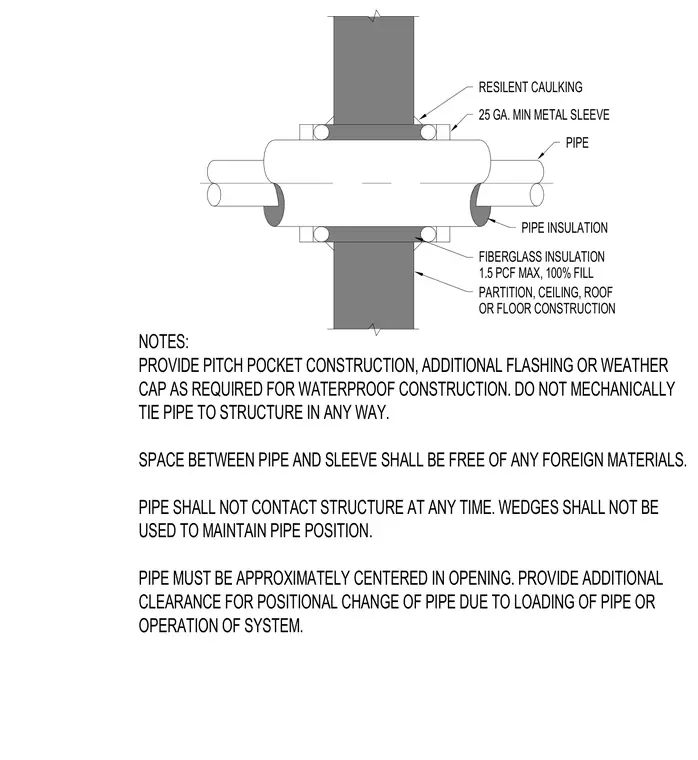

An isolated pipe penetration passes through partition, ceiling, roof, or floor construction centered within a twenty-five gauge minimum metal sleeve. The pipe is insulated with fiberglass insulation at a maximum of one point five pounds per cubic foot at one hundred percent fill, and sealed with resilient caulking at the sleeve ends. The pipe remains unattached to the structure without mechanical ties or wedges, maintaining the required annular space and clearance for positional movement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
