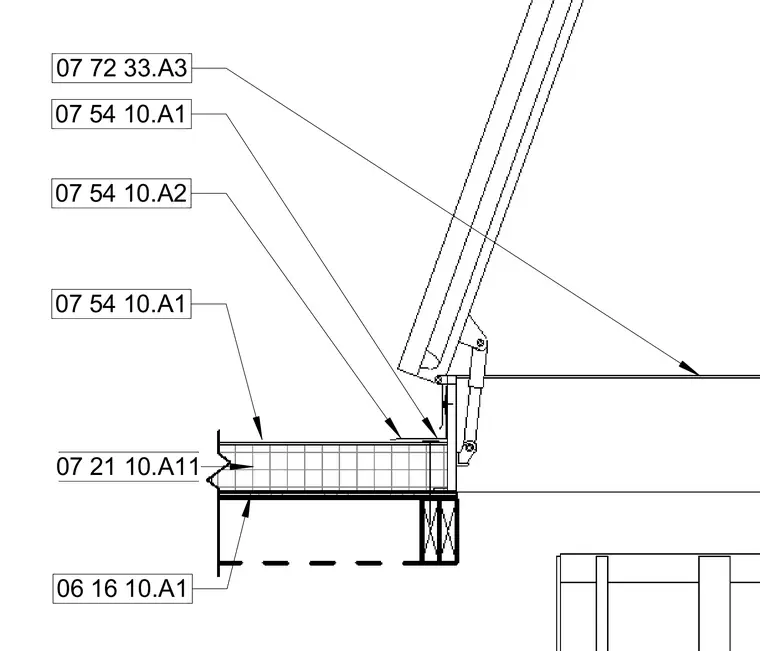

A roof hatch curb is anchored to a framed roof structure with sheathing and continuous insulation. The curb assembly integrates with thermoplastic membrane roofing and roof accessories using manufacturer-specified assembly codes. Flashing and membrane layers wrap up the vertical curb legs to maintain weather tightness around the hatch opening.
